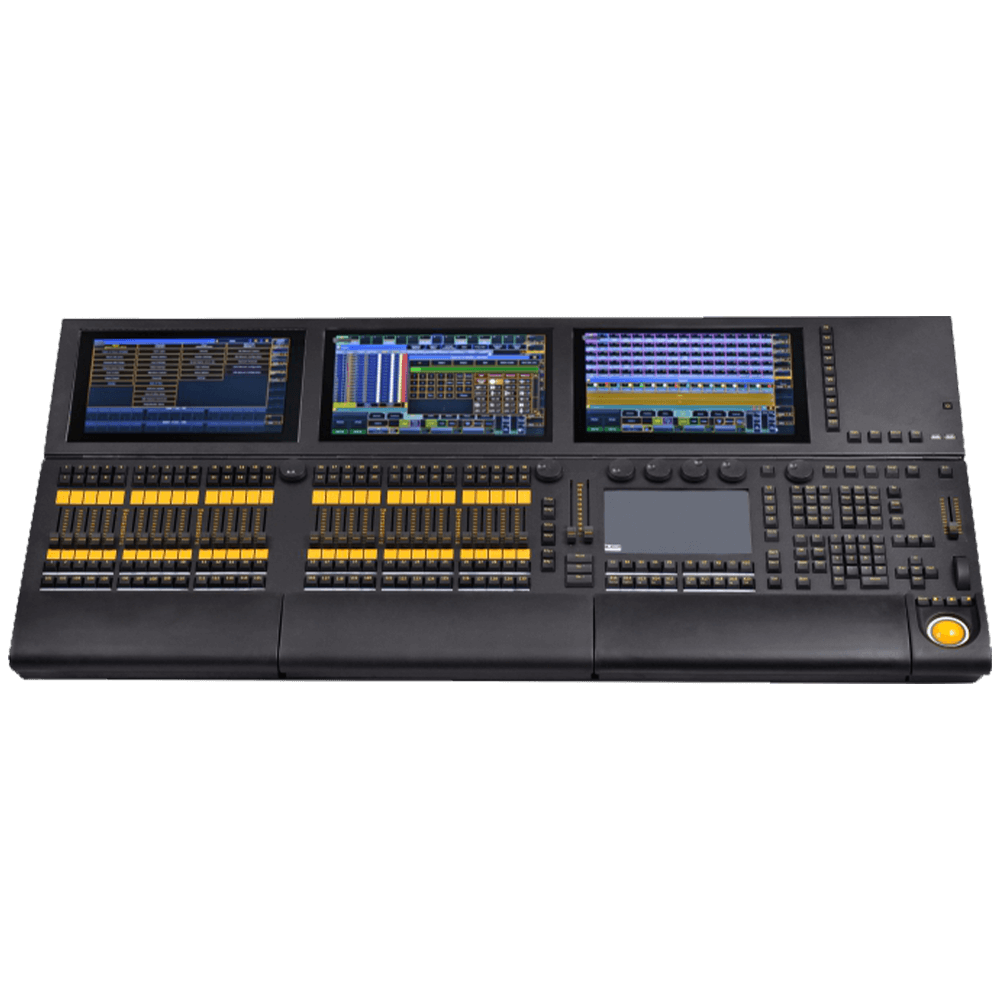

GrandMA2 Full Size Stage Lights Dmx Controller Equipment Supplier
Model Number:NF-MA2
30 High-Precision Electric Putters 60mm
315.4-Inch Touch Screen
7 Wear-Resistant Encoders
Request a Quote
New Feel Lighting
THIS IS A VIDEO OF Our Story
watch viedo
DMX Outputs
7 DMX outputs, the maximum expansion can support 65536 channels of built-in parameters.
Electric Push Rod
30 high-precision electric putters 60mm, 2AB fields Electric push rod (100mm), 1 master electric push rod.
Hardware
7 wear-resistant encoders (with Push function), 1 high-sensitivity trackball, 1 high-precision dimming well, 2 Gigabit Ethernet ports, 4 USB 2.0 ports, adjustable display clamshell.
Built-in Drawer and Built-in Keyboard
Independent orange backlit keys, MIDI input and output interface LTC/SMPTE time code, support for extended pushrods, 2 LED gooseneck light sockets, 1SSD, Inteli3 CPU, 4GB RAM, 2 Geforce graphic cards.
SOFTWARE
Supports both. Chinese and English languages, Linux operating system, support for DMX512, Artnet, ACN protocol, the system can be installed via disk, program data can be saved on hard disk or U disk Support multiple inline back-ups, supports handheld remote control, Supports 3D effect simulation on the stage, real-time on-site simulation, the system can be installed via U disk Program data can be saved on hard disk or U disk, supports DMX512, Artnet, ACN protocol, supports RDM management, supports Wysiwyg connection, massive lamp library supports LTP and HTP.
Summary
Size: 94cm * 65cm * 21cm 1: Imported industrial screen, higher brightness, wider viewing angle, fully silent backlit professional mechanical keys (adjustable backlight brightness) 2: Built-in push-pull professional backlit mechanical keyboard (adjustable backlight brightness) 7 industrial-grade encoders imported from Germany (with Push function) 3: Electric display screen back panel adjustment (0-80 degree adjustable angle) wide voltage design: AC 165V--260V, power: 450W4: Built-in UPS power supply, with under-voltage and over-voltage protection functions. Solid and reliable solid-state hard disk to ensure data security and faster storage. Two work light sockets (the console integrates work light switch function)
Specifications
Download Catalogue
DMX outputs
6 DMX outputs, 1 DMX input, connection extender, up to 65536 channels
Built-in 3 electric adjustable
wide viewing angle 15.4 inch touch screens and a 1 9-inch high-brightness multi-touch screen
Electric faders
30 high-precision electric faders (60mm) and 2 AB field electric faders (100mm)
Optical encoders
1 master electric putter, 7 German optical encoders (with PUSH function)
Sensitive Trackball
A highly sensitive trackball
Signals
2 Gigabit Ethernet ports, support MA NET, ARTNET, ETC NET2, PATHPORT,SCAN, SHOWNET, KINET1 signals,5 USB 2.0 ports.
Backlit Buttons
Adjustable yellow backlit buttons, built-in keyboard and drawer.
Output Interface
MIDI input and output interface
Built-in solid-state hard drive
Compatible with MA1 and MA2 systems
